Battery Flex Strips Motion Sensor
Flex Motion Sensor Battery 2M 830
GTIN: 4099854448935
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Light color: Warm White
- Flexible, bendable LED strips
Equipment / Accessories
- 4 x 1.5 AA batteries required (not in scope of delivery)
Safety advice
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
| Nominal wattage | 3.60 W |
| Nominal voltage | 6 V |
| Nominal current | 600.000 mA |
| Power factor λ | > 0.50 |
| Protection class | III |
Photometrical data
| Luminous flux | 150 lm |
| Luminous efficacy | 41 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 2000.00 mm |
| Height | 17.00 mm |
| Width | 8.00 mm |
| Product weight | 77.1 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
Application & Mounting
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 120 ° |
| Detection range of motion sensor | 0…3 m |
Certificates & Standards
| Standards | CE, UKCA |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854448935 | Folding box 1 |
34 mm x 101 mm x 142 mm | 106.00 g | 0.49 dm³ |
| 4099854448942 | Shipping box 6 |
210 mm x 110 mm x 155 mm | 743.00 g | 3.58 dm³ |
User instruction / safety instructions
Flex Motion Battery
Flex Motion Battery
Legal information
Safety insert G11226671
Safety insert G11226671
Declarations of conformity
FLEX MOTION SENSOR BATTERY
FLEX MOTION SENSOR BATTERY
Product image: white background, upright
FLEX MOTION SENSOR BATTERY 2M 830
FLEX MOTION SENSOR BATTERY 2M 830
Product image: white background, upright, switched on
FLEX MOTION SENSOR BATTERY 2M 830
FLEX MOTION SENSOR BATTERY 2M 830
Product line drawing with letters
FLEX MOTION SENSOR BATTERY 2M 830
FLEX MOTION SENSOR BATTERY 2M 830
Product line drawing with numbers
FLEX MOTION SENSOR BATTERY 2M 830
FLEX MOTION SENSOR BATTERY 2M 830
Product line drawing, front, no dimensions
FLEX MOTION SENSOR BATTERY 2M 830
FLEX MOTION SENSOR BATTERY 2M 830

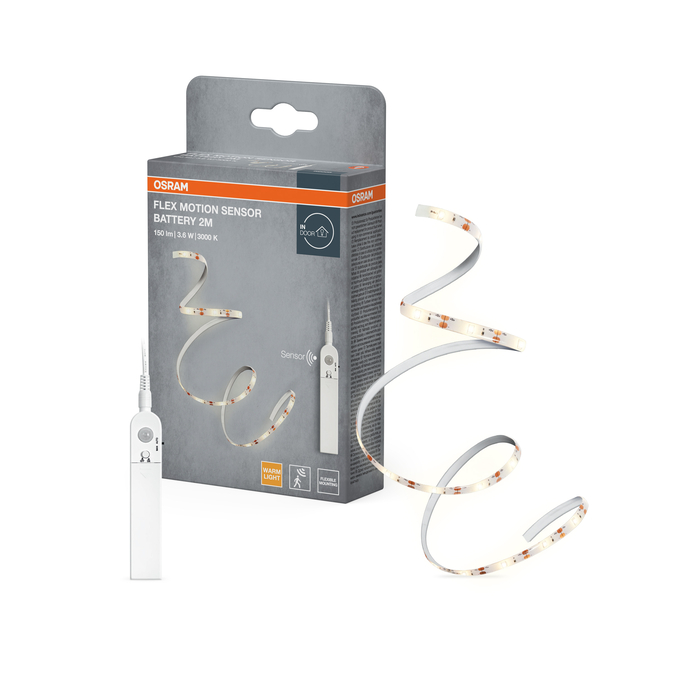

Combo Shot = Product Beauty Shot + Packaging Image
